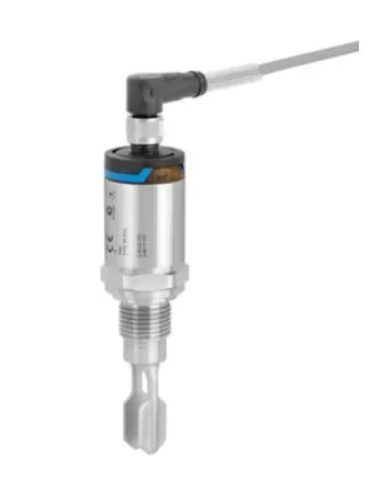

Endress+Hauser FTL31-AA4U3BAWSJ Vibronic Point level detection Liquiphant FTL31

SPECIFICATIONS:
1. Approval: AA  Non-hazardous area
2. Power Supply; Output: 4  10-30VDC; 3-wire PNP
3. Electrical Connection: U  Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl.
4. Sensor Design: 3  Max. process temperature 150oC/302oF
5. Sensor Type: BA  Short tube version 316L Ra<3.2um/126uin
6. Process Connection: WSJ  Thread ISO228 G1, 316L, install > accessory weld-in adapter

Specs at a glance
1. Process temperature
   -40 °C ... 150 °C
   (-40 °F ... 302 °F)

2. Process pressure / max. overpressure limit
   Vacuum ... 40 bar
   (Vacuum ... 580 psi)

3. Min. density of medium
   >0,7g/cm³
   (>0,5g/cm³ optional)

Field of application

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:
   - Smallest vibronic sensor in the market
Safe:
   - Continuous self-monitoring
   -Reliable switching independent of media properties
Easy:
   - No calibration
   - Plug & play
   - IO-Link connectivity

Benefits

• Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

• Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

• A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

• No calibration is required, no specific know-how or tools (e.g. software) necessary

• Robust design made of stainless steel (316L) assures highest durability

• A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

• No mechanically moved parts, free of maintenance
