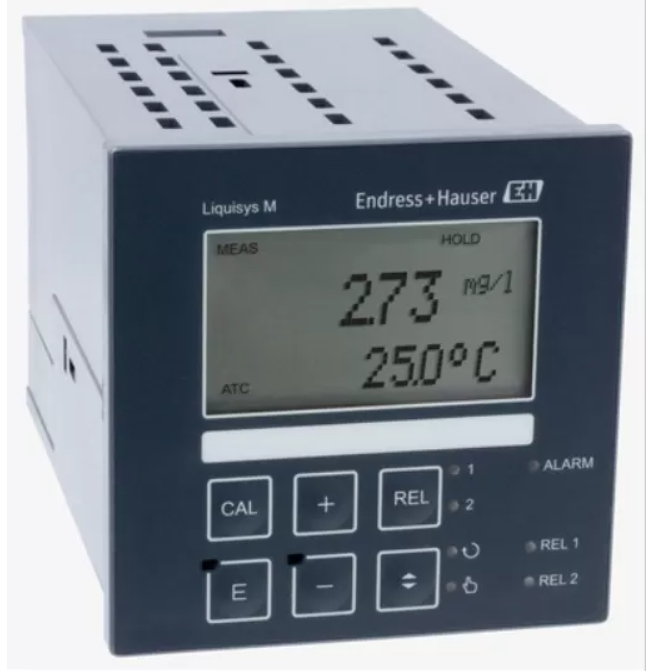

Endress+Hauser COM223-DX0005 Dissolved oxygen transmitter Liquisys COM223

Endress+Hauser COM223-DX0005 Dissolved oxygen transmitter Liquisys COM223

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	ATEX
Model Number:	COM223-DX0005
Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	Negotiable
Supply Ability:	100pcs per month

Product Details

Product Tags

Detailed Product Description
Manufacturer:Endress+HauserProduct No.:COM223-DX0005
Sensor Input; Software:OS41 (COS4/4HD); Basic VersionPower Supply:230VAC
Output:1x 0/4...20mA, Primary ValueAdditional Contact:Not Selected
Gross Weight:0.785 KilogramCountry Of Origin:Germany
Highlight:

DX0005 Endress+Hauser Instruments

COM223 Endress+Hauser Instruments

COM223 Dissolved Oxygen Transmitter


Endress+Hauser COM223-DX0005 Dissolved oxygen transmitter Liquisys COM223



SPECIFICATIONS:
1. Sensor Input; Software: DX COS41 (COS4/4HD); basic version
2. Power Supply: 0 230VAC
3. Output: 0 1x 0/4...20mA, primary value
4. Additional Contact: 05 Not selected



Specs at a glance
1. Input
    1-channel transmitter

2. Output / communication
    0/4-20mA, Hart, Profibus.



Field of application

Liquisys COM223 is a standard transmitter for use with COS41 and COS61 oxygen sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.

The Liquisys COM223 transmitter works with Oxymax COS41 and Oxymax COS61 dissolved oxygen sensors in environmental applications, such as:

  -O2 control in the aeration basin

  -O2 control and monitoring of drinking water

  -Surface water monitoring

  -Process water treatment and monitoring

  -O2 control in fish farming for optimum growth conditions

Liquisys COM223 features the following protocols and interfaces:

  -0/4...20 mA

  -HART

  -PROFIBUS DP

  -PROFIBUS PA



Benefits

  • More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.

  • Reliable oxygen control: Current input for flow rate monitoring with controller shut off or for feedforward control.

  • Easy to operate and service: Simple single-point calibration in air, air-saturated water or in the medium, direct access for manual contact control.

  • Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

  • Fit for every application: Numerous extensions, e.g. P(ID) controller, timer, etc., allow for flexible adaption to all processes.

Endress+Hauser COM223-DX0005 Dissolved oxygen transmitter Liquisys COM223 0
