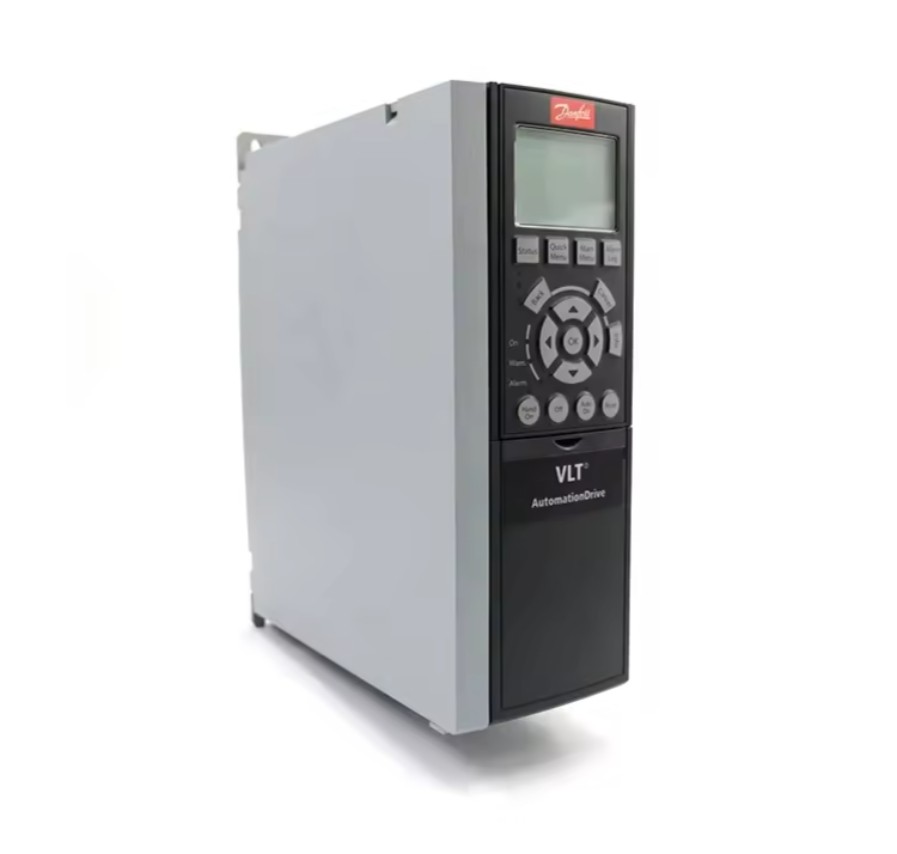

Whole series DANFOSS DRIVES VLT HVAC Basic Drive FC 101

Whole series DANFOSS DRIVES VLT HVAC Basic Drive FC 101

INQUIRY

Product Details

Product Tags

Efficient, basic control of fans and pumps in HVAC applications

The VLT® HVAC Basic Drive is supplied with built-in functions that reduce initial costs and increase productivity. It is the most compact unit in its class. Integrated DC coils reduce harmonics to an absolute minimum, and the Automatic Energy Optimizer saves 15-25% energy from the second you turn the it on. Achieve the lowest cost of ownership with a premier drive dedicated to ventilation, heating, and refrigeration applications.

Features and benefits

* Easy to configure, install, and wire
* Flying Start: Reduced mechanical wear on equipment
* Built-in PI controller
* Integrated fan, pump functionality
* Fire Override Mode for enhanced safety

* Automatic Energy Optimizer function Saves 5 – 15% energy

Product model	Power	Electric current
FC-101PK37T4E20H4XXCXXXSXXXXAXBXCXXXXDX	0.37	1.2
FC-101PK75T4E20H4XXCXXXSXXXXAXBXCXXXXDX	0.75	2.2
FC-101P1K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX	1.5	3.7
FC-101P2K2T4E20H4XXCXXXSXXXXAXBXCXXXXDX	2.2	5.3
FC-101P3K0T4E20H4XXCXXXSXXXXAXBXCXXXXDX	3	7.2
FC-101P4K0T4E20H4XXCXXXSXXXXAXBXCXXXXDX	4	9
FC-101P5K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX	5.5	12
FC-101P7K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX	7.5	15.5
FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX	11	23
FC-101P15KT4E20H4XXCXXXSXXXXAXBXCXXXXDX	15	31
FC-101P18KT4E20H4XXCXXXSXXXXAXBXCXXXXDX	18.5	37
FC-101P22KT4E20H4XXCXXXSXXXXAXBXCXXXXDX	22	43
FC-101P30KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	30	61
FC-101P37KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	37	73
FC-101P45KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	45	90
FC-101P55KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	55	106
FC-101P75KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	75	147
FC-101P90KT4E20H2XXCXXXSXXXXAXBXCXXXXDX	90	177
FC-101PK75T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	0.75	2.2
FC-101P1K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	1.5	3.7
FC-101P2K2T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	2.2	5.3
FC-101P3K0T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	3	7.2
FC-101P4K0T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	4	9
FC-101P5K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	5.5	12
FC-101P7K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX	7.5	15.5
FC-101P11KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	11	23
FC-101P15KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	15	31
FC-101P18KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	18.5	37
FC-101P22KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	22	43
FC-101P30KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	30	61
FC-101P37KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	37	73
FC-101P45KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	45	90
FC-101P55KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	55	106
FC-101P75KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	75	147
FC-101P90KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX	90	177
