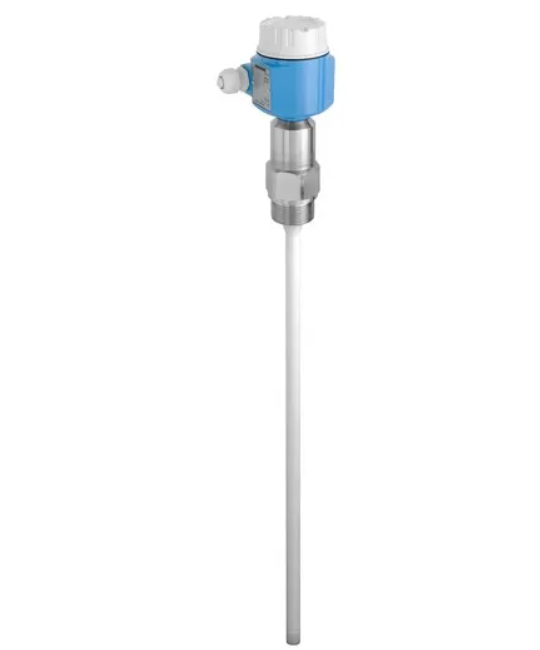

Endress+Hauser FMI51-A1BASJA4A1A Capacitance Level Measurement Liquicap FMI51

Endress+Hauser FMI51-A1BASJA4A1A Capacitance Level Measurement Liquicap FMI51
Endress+Hauser FMI51-A1BASJA4A1A Capacitance Level Measurement Liquicap FMI51


Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	ATEX
Model Number:	FMI51-A1BASJA4A1A
Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	Negotiable
Supply Ability:	100pcs per month

Product Details

Product Tags

Detailed Product Description
Measuring Principle:CapacitiveSafety Approvals:SIL
Design Approvals:EN 10204-3.1 NACE MR0175Hygienic Approvals:3A, EHEDG
Marine Approval:GL/ ABS/ DNVNet Weight:3.819 Kilogram
Highlight:

Endress+Hauser FMI51-A1BASJA4A1A

,

Endress+Hauser Capacitance Level measurement

,

Liquicap FMI51 Capacitance Level measurement


Endress+Hauser FMI51-A1BASJA4A1A Capacitance Level measurement Liquicap FMI51



SPECIFICATIONS:

Measuring principleCapacitive
Characteristic / ApplicationFully insulated rod probe, for standart- and extreme process conditions (temperature, pressure, build-up)
Interface measurementInterfaces liquid / liquid also with emulsion layers
SpecialitiesInactive length
Factory calibrated
short response time by change of value
Supply / Communication12-36V DC HART
PFM
AccuracyRepeatablity 0,1%
Linearity error for conductive liquids<0,25%
Process pressure / max. overpressure limitVacuum ... 100 bar
(Vaccum ... 1450 psi)
Main wetted partsInsulation material: PTFE,PFA
316L
Communication4...20mA HART
PFM
Certificates / ApprovalsATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI, EAC
Safety approvalsSIL
Hygienic approvals3A, EHEDG
Marine approvalGL/ ABS/ DNV

Endress+Hauser FMI51-A1BASJA4A1A Capacitance Level Measurement Liquicap FMI51 0
