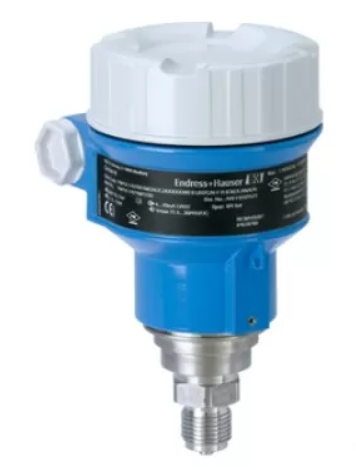

Endress+Hauser PMP51-AA21JA1PGJGCJA1 Absolute And Gauge Pressure Cerabar PMP51

SPECIFICATIONS

• Approval: AA Non-hazardous area
• Output: 2 4-20mA HART
• Display, Operation: 1 LCD, push button on display/electronics
• Housing: J F31 Alu, glass window
• Electrical Connection: A Gland M20, IP66/68 NEMA4X/6P
• Sensor Range: 1P 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O overload: 40bar/4MPa/600psi
• Reference Accuracy: G Standard
• Calibration; Unit: J Customised pressure; see additional spec.
• Process Connection: GCJ Thread ISO228 G1/2 EN837, 316L
• Membrane Material: A 316L
• Fill Fluid: 1 Silicone oil

Specs at a glance

• Accuracy
  Standard 0.1%
  Platinum 0.075%

• Process temperature
  -40°C...130°C
  (-40°F...266°F)

• Pressure measuring range
  1 bar...400 bar
  (15 psi...6000 psi)

• Process pressure / max. overpressure limit
  600 bar (9000 psi)

• Main wetted parts
  316L

• Max. measurement distance
  4000 m (13.123 ft) H2O

• Material process membrane
  316L, AlloyC,
  Rhodium>Gold

• Measuring cell
  400mbar...400bar
  (15psi...6000psi)
  relative/ absolute

Field of application

The Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Single chamber aluminum or stainless steel (316L) housing.

• Process connections: Threads, flanges or hygienic connections

• Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h

• Measuring range: -1/0 up to +400bar (-15/0 up to +6,000psi)

• Accuracy: ±0.1%, "Platinum" ±0.075%

• International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits
• Accurate measurement of the process value even in the case of changing process temperature

• Process safety assured with small flush mounted process connections in hygienic applications

• For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511

• Modular concept for easy replacement of display or electronics

• Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• Seamless and independent system integration (HART/PA/FF)

• Available with mounted manifolds: always fit, always tested for leaks
