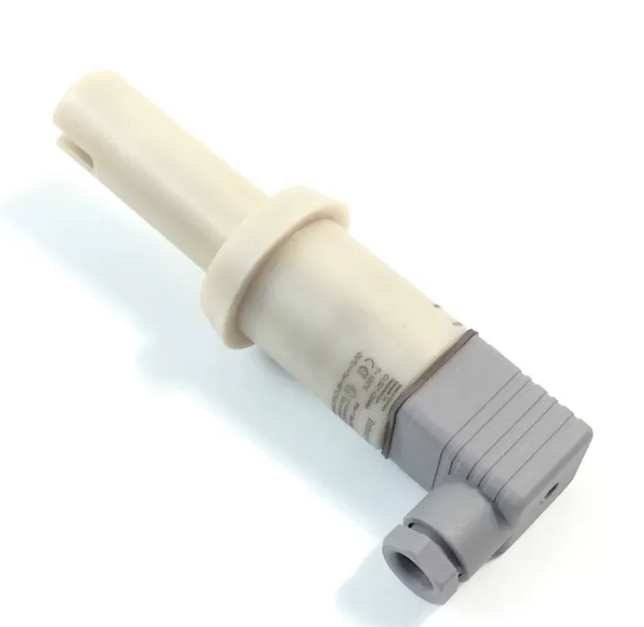

Endress+Hauser CLS21-C1E4A Analog Conductivity Sensor Condumax CLS21

Endress+Hauser CLS21-C1E4A Analog Conductivity Sensor Condumax CLS21

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	ATEX
Model Number:	CLS21-C1E4A
Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	Negotiable
Supply Ability:	100pcs per month

INQUIRY

Product Details

Product Tags

Detailed Product Description

Process Connection:	Thread G 1"; PES	Cable Connection:	Plug DIN 4-pole, PG9
Temperature Sensor:	Pt100	Net Weight:	0.232 Kilogram
Ex Certification:	ATEX	Measuring Principle:	Conductive
Highlight:	Condumax CLS21 Analog conductivity sensor , Endress+Hauser CLS21-C1E4A , CLS21-C1E4A Analog conductivity sensor

Endress+Hauser CLS21-C1E4A Analog conductivity sensor Condumax CLS21

Field of application

Condumax CLS21 is a robust conductivity sensor for all process and environmental applications. It provides you with precise and reliable measuring values for an optimum process and product quality monitoring. Better still, the sensor features high chemical, thermal and mechanical stability and high durability.

Condumax CLS21 measures conductivity in all process and environmental applications, such as:

Potable water treatment
Desalination plants
Industrial water treatment
River/lake monitoring
Phase separation in medium conductivities (e.g. milk/water)

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

SPECIFICATIONS

Measuring principle	Conductive
Application	Water, waste water, process, media separation, industrial water.
Characteristic	2-electrode system for application in the middle application range.
Measuring range	k=1: 10,0 µS/cm - 20,0 mS/cm
Measuring principle	Conductive conductivity cell with graphite electrodes for applications in the middle range.
Design	2-electrode system with parallel arranged electrodes
Material	Cell shaft: PES Electrodes: graphite
Dimension	Diameter: 24 mm (0.936 inch) Length: 61 mm 2.37 inch)
Process temperature	max. 135°C (max. 275°F)
