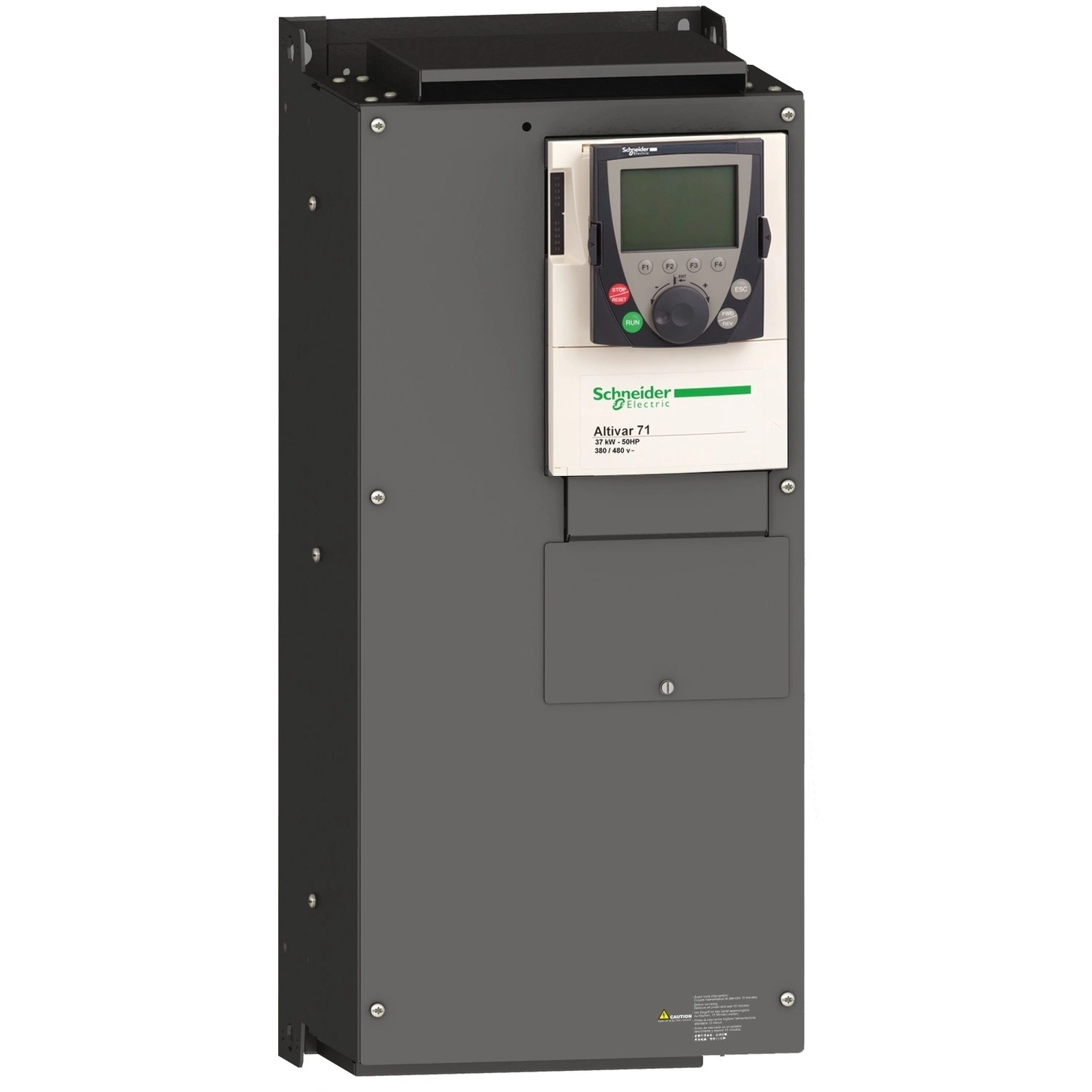

ATV71 - 75kw-100HP - 480V (ATV71HD75N4) Schneider Frequency Inverter Drive

Range of Product	Altivar 71
Product or Component Type	Variable speed drive
Product Specific Application	Complex, high-power machines
Component name	ATV71
Motor power kW	75 kW, 3 phase 380...480 V
Maximum Horse Power Rating	100 hp, 3 phase 380...480 V
Maximum motor cable length	328.08 ft (100 m) shielded cable
656.17 ft (200 m) unshielded cable
power supply voltage	380...480 V - 15...10 %
Phase	3 phase
Line current	137 A 480 V 3 phase 75 kW / 100 hp
167 A 380 V 3 phase 75 kW / 100 hp

INQUIRY

Product Details

Product Tags

ATV71 - 75kw-100HP - 480V (ATV71HD75N4) Schneider Frequency Inverter Drive

Range of Product	Altivar 71
Product or Component Type	Variable speed drive
Product Specific Application	Complex, high-power machines
Component name	ATV71
Motor power kW	75 kW, 3 phase 380...480 V
Maximum Horse Power Rating	100 hp, 3 phase 380...480 V
Maximum motor cable length	328.08 ft (100 m) shielded cable 656.17 ft (200 m) unshielded cable
power supply voltage	380...480 V - 15...10 %
Phase	3 phase
Line current	137 A 480 V 3 phase 75 kW / 100 hp 167 A 380 V 3 phase 75 kW / 100 hp
EMC filter	Integrated
Assembly style	With heat sink
Apparent power	109.9 kVA 380 V 3 phase 75 kW / 100 hp
Prospective line Isc	22 kA 3 phase
Nominal output current	124 A 2.5 kHz 460 V 3 phase 75 kW / 100 hp 160 A 2.5 kHz 380 V 3 phase 75 kW / 100 hp
Maximum transient current	240 A 60 s 3 phase 75 kW / 100 hp 264 A 2 s 3 phase 75 kW / 100 hp
Output frequency	0.1…500 Hz
Nominal switching frequency	2.5 kHz
Switching frequency	1...16 kHz adjustable 2.5...16 kHz with derating factor
Asynchronous motor control profile	ENA (Energy adaptation) system for unbalanced loads Voltage/frequency ratio (2 or 5 points) Flux vector control (FVC) with sensor (current vector) Sensorless flux vector control (SFVC) (voltage or current vector)
Type of polarization	No impedance Modbus

Model	power	Model	power	Model	power	Model	pwer	Model
ATV610U07N4	0.75KW	ATV610U40N4Z	4.0KW	ATV630D11N4Z	11KW	ATV630D55N4	55KW	ATV930D55N4Z
ATV610U15N4	1.5KW	ATV610U55N4Z	5.5KW	ATV630D15N4Z	15KW	ATV630D75N4	75KW	ATV930D75N4Z
ATV610U22N4	2.2KW	ATV610U75N4Z	7.5KW	ATV630D18N4Z	18.5KW	ATV630D90N4	90KW	ATV930D90N4Z
ATV610U30N4	3.0KW	ATV610D11N4Z	11KW	ATV630D22N4Z	22KW	ATV630C11N4	110KW	ATV930U07N4
ATV610U40N4	4.0KW	ATV610D15N4Z	15KW	ATV630D30N4Z	30KW	ATV630C13N4	132KW	ATV930U15N4
ATV610U55N4	5.5KW	ATV610D18N4Z	18.5KW	ATV630D37N4Z	37KW	ATV630C16N4	160KW	ATV930U22N4
ATV610U75N4	7.5KW	ATV610D22N4Z	22KW	ATV630D45N4Z	45KW	ATV630C22N4	220KW	ATV930U30N4
ATV610D11N4	11KW	ATV610D30N4Z	30KW	ATV630D55N4Z	55KW	ATV630C25N4	250KW	ATV930U40N4
ATV610D15N4	15KW	ATV610D37N4Z	37KW	ATV630D75N4Z	75KW	ATV630C31N4	315KW	ATV930U55N4
ATV610D18N4	18.5KW	ATV610D45N4Z	45KW	ATV630D90N4Z	90KW	ATV930		ATV930U75N4
ATV610D22N4	22KW	ATV610D55N4Z	55KW	ATV630U07N4	0.75KW	ATV930U07N4Z	0.75KW	ATV930D11N4
ATV610D30N4	30KW	ATV610D75N4Z	75KW	ATV630U15N4	1.5KW	ATV930U15N4Z	1.5KW	ATV930D15N4
ATV610D37N4	37KW	ATV610D90N4Z	90KW	ATV630U22N4	2.2KW	ATV930U22N4Z	2.2KW	ATV930D18N4
ATV610D45N4	45KW	ATV610C11N4Z	110KW	ATV630U30N4	3KW	ATV930U30N4Z	3KW	ATV930D22N4
ATV610D55N4	55KW	ATV610C13N4Z	132KW	ATV630U40N4	4KW	ATV930U40N4Z	4KW	ATV930D30N4
ATV610D75N4	75KW	ATV610C16N4Z	160KW	ATV630U55N4	5.5KW	ATV930U55N4Z	5.5KW	ATV930D37N4
ATV610D90N4	90KW	ATV630		ATV630U75N4	7.5KW	ATV930U75N4Z	7.5KW	ATV930D45N4
ATV610C11N4	110KW	ATV630U07N4Z	0.75KW	ATV630D11N4	11KW	ATV930D11N4Z	11KW	ATV930D55N4
ATV610C13N4	132KW	ATV630U15N4Z	1.5KW	ATV630D15N4	15KW	ATV930D15N4Z	15KW	ATV930D75N4
ATV610C16N4	160KW	ATV630U22N4Z	2.2KW	ATV630D18N4	18.5KW	ATV930D18N4Z	18.5KW	ATV930D90N4
ATV610U07N4Z	0.75KW	ATV630U30N4Z	3KW	ATV630D22N4	22KW	ATV930D22N4Z	22KW	ATV930C11N4
ATV610U15N4Z	1.5KW	ATV630U40N4Z	4KW	ATV630D30N4	30KW	ATV930D30N4Z	30KW	ATV930C13N4
ATV610U22N4Z	2.2KW	ATV630U55N4Z	5.5KW	ATV630D37N4	37KW	ATV930D37N4Z	37KW	ATV930C16N4
ATV610U30N4Z	3.0KW	ATV630U75N4Z	7.5KW	ATV630D45N4	45KW	ATV930D45N4Z	45KW
ATV610U30N4Z	3.0KW	ATV630U75N4Z	7.5KW	ATV630D45N4	45KW	ATV930D45N4Z	45KW
ATV71
ATV71HD75N4	75 kW	ATV71HC11N4	110 kW	ATV71HC20N4	200 kW	ATV71HC25N4	220 kW
