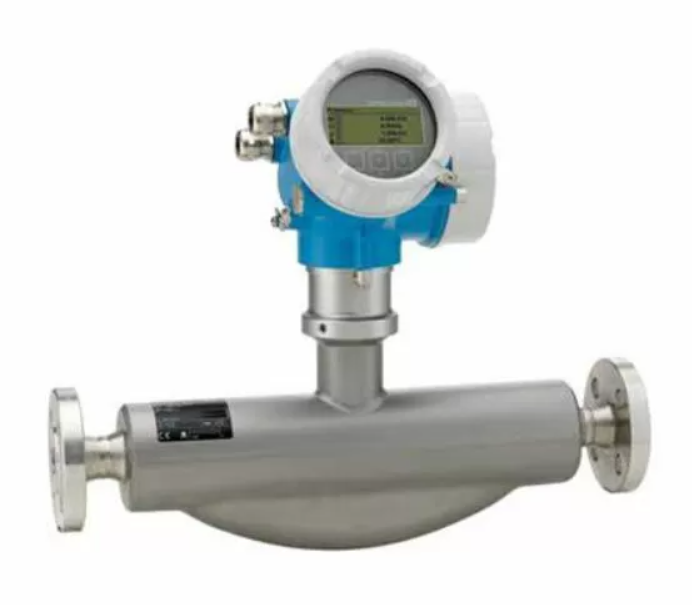

Endress+Hauser 8F2B08-AABECASAFTSA Proline Promass F 200 Coriolis Flowmeter

SPECIFICATIONS

• Approval: AA Non-hazardous area
• Output; Input: B 4-20mA HART, pulse/freq./switch output
• Display; Operation: E SD03 4-line, illum.; touch control + data backup function
• Housing: C GT20 dual compartment, alu, coated
• Electrical Connection: A Gland M20
• Meas. Tube Mat., Wetted Parts Surface: SA Stainl. steel, not polished
• Process Connection: FTS Tri-Clamp, 1.4404/316/316L for pipe size
• Calibration Flow: A 0.10% Mass

Specs at a glance
• Max. measurement error
   Mass flow (liquid): ±0.1 %
   Volume flow (liquid): ±0.1 %
   Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

• Measuring range
   0 to 70 000 kg/h (0 to 2570 lb/min)

• Medium temperature range
   Standard: –50 to +150 °C (–58 to +302 °F)
   Option: –50 to +205 °C (–58 to +401 °F)

• Max. process pressure
   PN 100, Class 600, 63K

• Wetted materials
   Measuring tube: 1.4539 (904L); 1.4404 ; Alloy C22, 2.4602 (UNS N06022)
   Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Field of application
Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times ensured by Heartbeat Technology.

Device properties

• Mass flow: measured error ±0.1 %

• Medium temperature up to +205 °C (+401 °F)

• Nominal diameter: DN 8 to 80 (3/8 to 3")

• Loop-powered technology

• Robust dual-compartment housing

• Plant safety: worldwide approvals (SIL, Haz. area)

Benefits

• Highest process safety – immune to fluctuating and harsh environments

• Fewer process measuring points – multivariable measurement (flow, density, temperature)

• Space-saving installation – no in/outlet run needs

• Convenient device wiring – separate connection compartment

• Safe operation – no need to open the device due to display with touch control, background lighting

• Integrated verification – Heartbeat Technology
