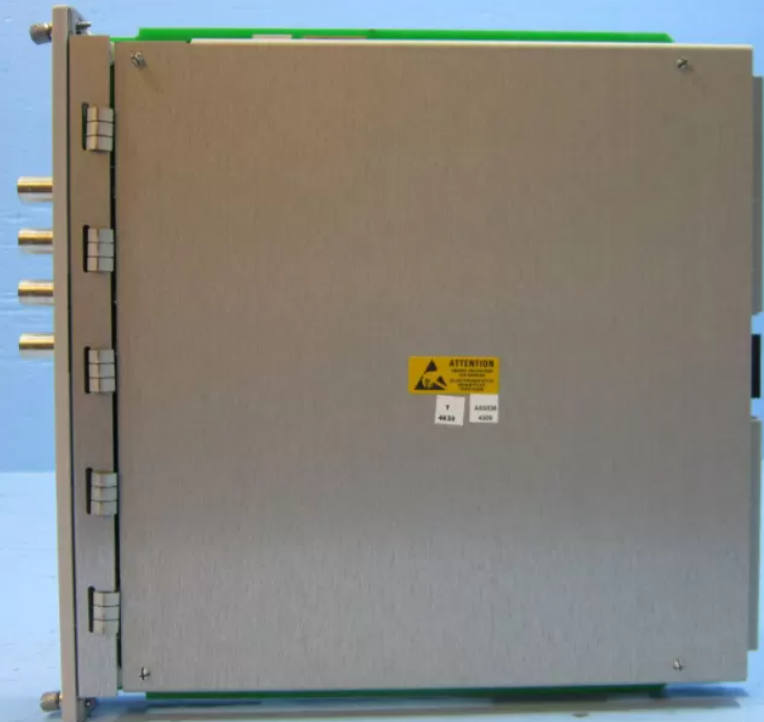

3500/64-01-00 Bently Nevada Dynamic Monitor I/O Module With Internal Termination

3500/64-01-00 Bently Nevada Dynamic Monitor I/O Module With Internal Termination
3500/64-01-00 Bently Nevada Dynamic Monitor I/O Module With Internal Termination

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	ATEX
Model Number:	3500/64-01-00
Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	12-18 weeks
Supply Ability:	100pcs per month

Product Details

Product Tags

Detailed Product Description
Manufacturer:Bently NevadaModel Number:3500/64-01-00
Product Type:Pressure MonitorI/O Module Type:I/O Module With Internal Termination
Agency Approval:NoneFactory Warranty:12 Months
Country Of Origin:USAShipping Weight:2 Kg
Highlight:

Bently Nevada Dynamic Monitor

,

3500/64-01-00 Dynamic Monitor

,

3500 bently vibration monitoring system


Bently Nevada 3500/64-01-00 Dynamic Pressure Monitor



Description

The 3500/64M Dynamic Pressure Monitor is a single slot, fourchannel monitor that accepts input from high temperature pressure transducers and uses this input to drive alarms. The monitor’s one measured variable per channel is bandpass dynamic pressure.

You can use the 3500 Rack Configuration Software to configure the bandpass corner frequencies along with an additional notch filter. The monitor provides a recorder output for control system applications.

The primary purpose of the 3500/64M Dynamic Pressure Monitor is to provide the following:
      • Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
      • Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, conditions its input signal to generate various parameters called measured variables. You can configure alert and danger setpoints for each active measured variable.





Information

Dynamic Pressure Module
3500/64 - AA - BB
• AA: I/O Module Type
       01  I/O Module with Internal Termination
       02  I/O Module with External Termination
• BB: Agency Approval
       00  None
       01  CSA / NRTL / C (Class I, Division 2)
       02  ATEX / IECEx / CSA (Class I, Zone 2)



Cables
3500 Dynamic Pressure Signal to External Termination Block Cable
129525 - AAAA-BB
• AA: I/O Cable Length
       0005 5 feet (1.5 metres)
       0007 7 feet (2.1 metres)
       0010 10 feet (3.0 metres)
       0025 25 feet (7.6 metres)
       0050 50 feet (15.2 metres)
       0100 100 feet (30.5 metres)
• BB: Assembly Instructions
       01 Not assembled
       02 Assembled



3500 Recorder Output to External Termination Block Cable
129529-AAAA-BB
• AA: I/O Cable Length
       0005 5 feet (1.5 metres)
       0007 7 feet (2.1 metres)
       0010 10 feet (3.0 metres)
       0025 25 feet (7.6 metres)
       0050 50 feet (15.2 metres)
       0100 100 feet (30.5 metres)
• BB: Assembly Instructions
       01 Not assembled
       02 Assembled
