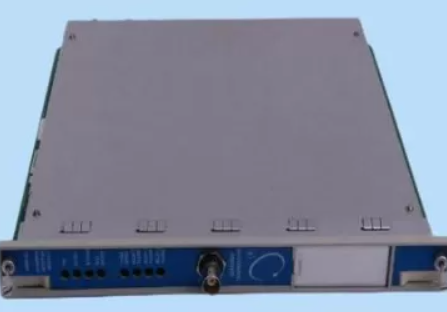

Bently Nevada 3500/94M-02-00-CN VGA Display Module

Description

The 3500/94M VGA module displays all 3500 machinery protection system information, including:
      • System event list
      • Alarm event list
      • All module and channel data
      • Alarm and OK status
      • Nine custom display options

      • Enhanced Keyphasor Module

Use the 3500 Rack Configuration Software to configure up to nine custom screens. By default, one bar graph screen shows all of the 1X-filtered vibration measurements, while another shows the proximity transducer gap values.

You can organize custom screens into machine train groups. You can also organize system data into any pages on thecustom screen.

System Components
The 3500/94M is comprised of:
      • The 3500/94M VGA module
      • An I/O module
      • A 10" or 15" VGA touch screen display

You can mount the VGA display monitor using standard cables up to 6 m (20 ft) from a 3500 rack, or using a supported Keyboard Video Monitor (KVM) Extender, up to 10km (6.2 miles) from the 3500 rack.

Touch Screen Displays
Use either the 10" and 15" Advantech VGA touch screen displays. These compact, durable displays are designed for excellent viewing quality in industrial applications.
The 10" Advantech display is certified for hazardous environments. Each display requires a separate power supply. The 3500 Rack Configuration Software supports both display drivers.

Reduce the Number of Displays
Using a standard cable and the optional Display Router Box, you can view data from up to four 3500 racks on one display.
The alarm and OK status is continually displayed in the upper right corner of the VGA display. A rack select button changes color to indicate if any rack connected to the Display Router Box is Not OK or in Alarm status.

Information

System Display
3500/94M-AA-BB-CC
• A: Display Size and Mounting
      00 None
      01 10" display, face mount (only available for rackmounted 3500 monitor)
      02 10" display, 19" rack mount
      03 10" display, panel mount (installation hardware included)
      04 10" display, independent mount
      05 15" display, 19" rack mount
      06 15" display, panel mount (installation hardware included)
      07 Router box, no display

• B: KVM Extender and Display Router Box Cables
      00 None
      01 Wired CAT5 UTP KVM extender and cable 250 ft (76.2 m)
      02 Wired CAT5 UTP KVM extender and cable 500 ft (152.4 m)
      03 Wired CAT5 UTP KVM extender and cable 1,000 ft (304.8 m)
      12 Display Router Box cable 20 ft (6m)
      20 SM FO KVM SNGL extender and cable 2,000' (609.6 m)
      21 SM FO KVM SNGL extender and cable 4,000' (1219.2 m)
      22 SM FO KVM SNGL extender and cable 6,000' (1828.8 m)
      23 SM FO KVM SNGL extender and cable 8,000' (2438.4 m)
      24 SM FO KVM SNGL extender with patch cables
      25 SM FO KVM DUAL extender and cable 2,000' (609.6 m)
      26 SM FO KVM DUAL extender and cable 4,000' (1219.2 m)
      27 SM FO KVM DUAL extender and cable 6,000' (1828.8 m)
      28 SM FO KVM DUAL extender and cable 8,000' (2438.4 m)
      29 SM FO KVM DUAL extender with patch cables

• C: Agency Approvals
      00 None
      01 CSA/NRTL/C (Class I, Division 2)
      02 Multi (CSA/ATEX/IECEx) (only available for the 10" display)
