200350-00-00-CN Bently Nevada 200350 Accelerometers Operating Temperature Range -54°C To +121 ºC
| Manufacturer: | Bently Nevada | Product No: | 200350-00-00-CN |
|---|---|---|---|
| Product Type: | 200350 Accelerometers | Mounting Stud: | ¼-28 SS W/ Brass Tip, 0.5” |
| Tolerance: | 100 MV/g ± 20% (10.2 MV/m/s^2 ±20%) | Approvals: | Approvals Country Specific |
| Condition: | Brand New | Warranty: | 12 Months |
| Highlight: | Bently Nevada Accelerometers,200350-00-00-CN Accelerometers,Bently Nevada 200350 Accelerometers | ||
200350-00-00-CN Bently Nevada 200350 Accelerometers
The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.

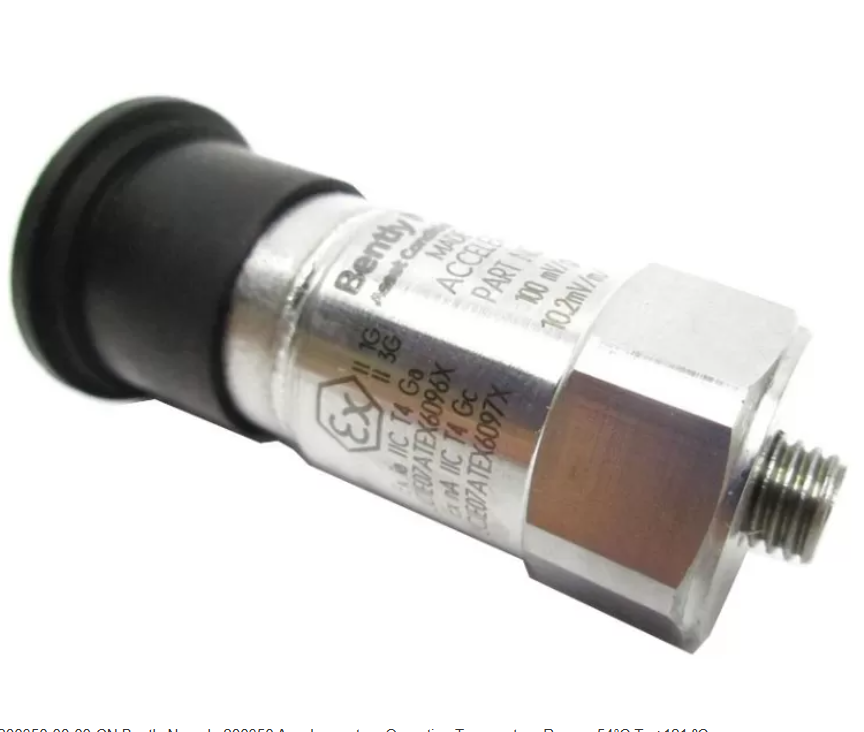

The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.
The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
Related Products:
| 200350-09-00-00 |
| 200350-09-00-CN |
| 200350-02-00-00 |
| 200350-02-00-CN |
| 200350-00-00-CN |
| 200355-02-00-00 |
| 200350-01-00-00 |
| 200350-10-00-CN |
| 200350-00-00-00 |
| 200150-01-CN |
| 200150-01-CN |
| 200150-00-CN |
| 200150-22-CN |
| 200150-05-CN |
| 200150-02-CN |
