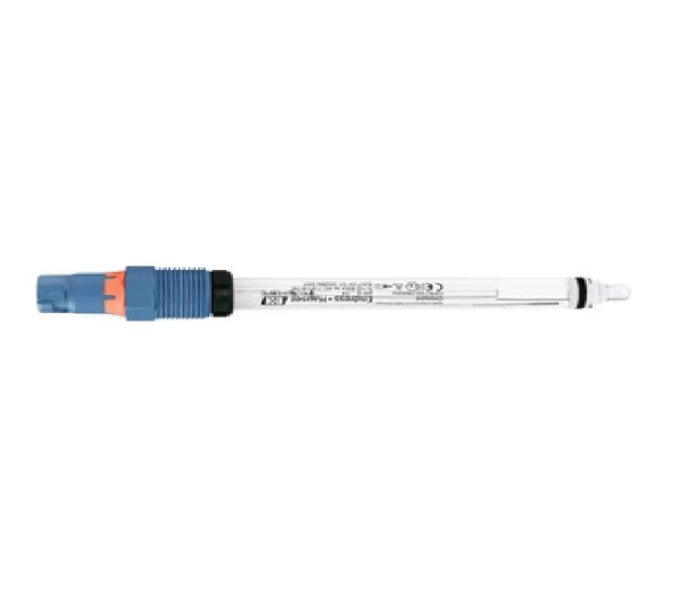

Endress+Hauser CPS11D-7AA21 Digital PH Sensor Orbisint CPS11D

Manufacture : Endress+Hauser

Part Number:CPS11D-7AA21

Version: 7 Basic version
Application Range: BA 0-14pH, 0...135oC, 16 bar, sterilizable

Shaft Length: 2 120mm

Approval: 1 Non-hazardous area + UKCA marking

Gross weight:0.068 Kilogram

Country of origin:USA

Country of dispatch:Germany

Specs at a glance
1. Measurement range
    pH 0 to 14

2. Process temperature
    0 to 135 °C (32 to 275 °F)

3. Process pressure
    1 to 17 bar (15 to 246 psi)

Field of application
Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money.


Benefits

• Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

• Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

• Optional salt ring for low conductivity applications such as boiler feed water and water for injection

• Maximum process safety through non-contact, inductive signal transmission

• Enables predictive maintenance due to storage of sensor and process-specific data

• Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
