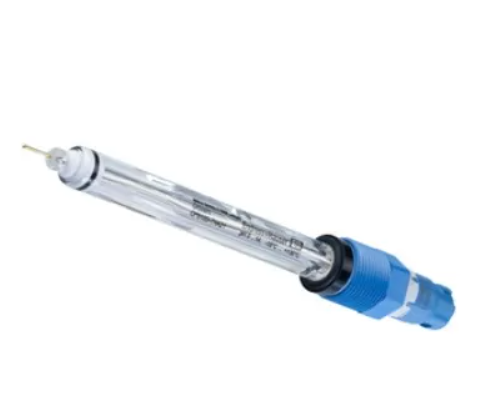

Endress+Hauser CPS12D-7NA21 Digital ORP sensor Orbisint CPS12D

SPECIFICATIONS:
1. Version: 7 Basic version
2. Measuring surface: NA Gold

3. Shaft length: 2 120 mm
4. Approval: 1 Non-hazardous area + UKCA marking

Field of application

Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money.

Benefits

• Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

• Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

• Various measuring elements for application in oxidizing or reducing media

• Maximum process safety through non-contact, inductive signal transmission

• Enables predictive maintenance due to storage of sensor and process-specific data

• Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
