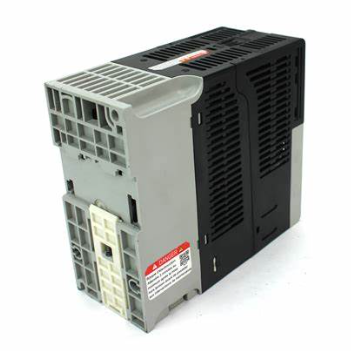

Allen Bradley PowerFlex 525 Drive Series Frequency Inverter 25B-D4P0N104 1.5KW 323-528V 5.7A 3Phases

Allen Bradley PowerFlex 525 Drive Series Frequency Inverter 25B-D4P0N104 1.5KW 323-528V 5.7A 3Phases

INQUIRY

Product Details

Brand Name	Allen-Bradley
Condition	100% New and Original
Series	PowerFlex 525 Drive
Warranty	1 Year
Input Voltage	323-528 VAC
Input Phase	3-Phase
Input Current	5.7A
Output Voltage	0-460VAC
Output Power	1.5 kW (2.0 HP)
I/O	Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Installation	Panel Mount / DIN Rail
Enclosure Rating	IP20 / NEMA UL Type Open
Built-in communication port	Ethernet I/P
Optional communication protocols	Dual Ethernet I/P;
Voltage	Three Phase, 480 VAC
Enclosure Type	IP20 NEMA / Open Type
Interface Module	Standard
Frame Size	Frame A
EMC Filtering Options	No Filter
Communication	Ethernet and USB
