3500/70M-01-00 Bently Nevada Vibration Monitoring System Recip Impulse Velocity Monitor

3500/70M-01-00 Bently Nevada Vibration Monitoring System Recip Impulse Velocity Monitor


Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	ATEX
Model Number:	350070M-01-00
Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	12-18 weeks
Supply Ability:	100pcs per month

INQUIRY

Product Details

Product Tags

Detailed Product Description

Manufacturer:	Bently Nevada	Model Number:	350070M-01-00
Product Type:	Recip Impulse Velocity Monitor	Agency Approval Option:	None
I/O Module Type:	Prox/Velom I/O Module With Internal Terminations	Country Of Origin:	USA
Factory Warranty:	12 Months	Weight:	2 Kg
Highlight:	3500/70M-01-00 Bently Nevada Vibration Monitoring System , Bently Nevada Vibration Monitoring System , bently nevada 3500

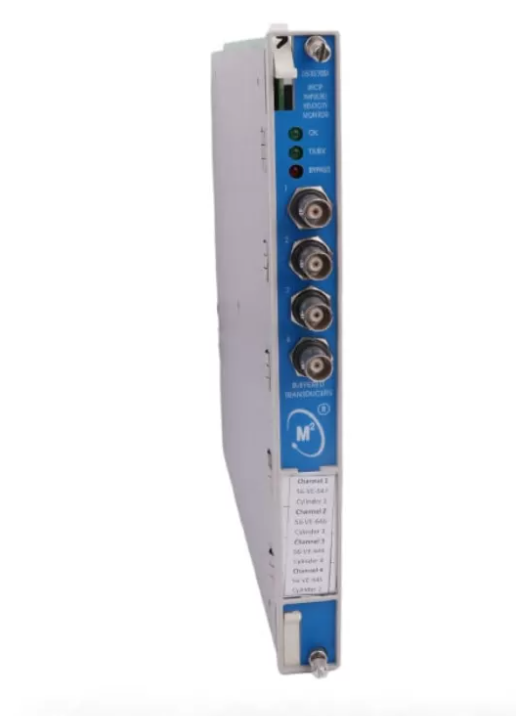

Bently Nevada 3500/70M-01-00 Recip Impulse Velocity Monitor

Description

The 3500/70M Recip Impulse Velocity Monitor is a 4-channel device used as part of the reciprocating compressor solutions package to monitor compressor crankcase and crosshead vibration. The monitor accepts input from seismic transducers, conditions the signal to derive vibration
measurements, and compares the conditioned signals with user-programmable alarms.

You can program each channel using the 3500 RackConfiguration Software to perform the following functions:
• Impulse Acceleration
• Acceleration 2
• Recip Velocity
• Low Frequency Recip Velocity

The primary purpose of the 3500/70M Recip Impulse VelocityMonitor is to provide the following:
• Machinery protection for reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
• Essential reciprocating compressor machine information for both operations and maintenance personnel

Information

External Termination Blocks

• 128702-01
Recorder External Termination Block

Euro Style connectors
• 128710-01

Recorder External Termination Block
Terminal Strip connectors
• 125808-08
Proximitor / Velomitor External Termination Block
Euro Style connectors
• 128015-08
Proximitor / Velomitor External Termination Block
Terminal Strip connectors

Cables
• 3500 Transducer (XDCR) to External Termination (ET) Block Cable
129525 - AAAA-BB
A: I/O Cable Length
0005 5 feet (1.5 meters)
0007 7 feet (2.1 meters)
0010 10 feet (3.0 meters)
0025 25 feet (7.6 meters)
0050 50 feet (15.2 meters)
0100 100 feet (30.5 meters)
B: Assembly Instructions
01 Not assembled
02 Assembled
• 3500 Recorder Output to External Termination (ET) Block Cable
129529-AAAA-BB
A: I/O Cable Length
0005 5 feet (1.5 meters)
0007 7 feet (2.1 meters)
0010 10 feet (3.0 meters)
0025 25 feet (7.6 meters)
0050 50 feet (15.2 meters)
0100 100 feet (30.5 meters)
B: Assembly Instructions
01 Not assembled
02 Assembled

3500/70M-01-00 Bently Nevada Vibration Monitoring System Recip Impulse Velocity Monitor 0

Related Product Recommendation:

3500/42-02-CN	3500/65-02-00	3500/15-05-07-00
3500/25-01-05-CN	3500/94M-05-00-00	3500/15-07-07-00
3500/25-02-03-00	3500/70M-01-00	3500/92-02-01-CN
3500/42-04-CN	3500/25-02-04-00	3500/05-01-02-00-00-01
3500/42-06-CN	3500/61-02-00	3500/15-07-07-CN
3500/45-02-00	3500/94-06-00-00	3500/22-01-01-00
3500/42-05-00	3500/05-01-03-CN-00-01	3500/22-01-02-00
3500/25-02-01-00	3500/62-03-CN	3500/25-01-01-00
3500/62-01-00	3500/60-01-CN	3500/25-01-01-CN
3500/60-05-00	3500/25-02-01-CN	3500/25-01-03-00
3500/42-01-CN	3500/15-07-00-CN	3500/25-02-02-CN
3500/94M-02-02-00	3500/92-03-01-CN	3500/32-01-00
3500/42-09-00	3500/72-01-00	3500/32-01-CN
3500/92-01-01-CN	3500/33-04-CN	3500/33-01-00
3500/05-02-04-00-00-01	3500/25-02-03-CN	3500/33-01-CN
3500/22-01-01-CN	3500/15-04-05-00	3500/33-02-00
3500/61-01-CN	3500/15-07-05-00	3500/40-01-00
3500/40-02-00	3500/50-01-CN	3500/92-04-01-CN
