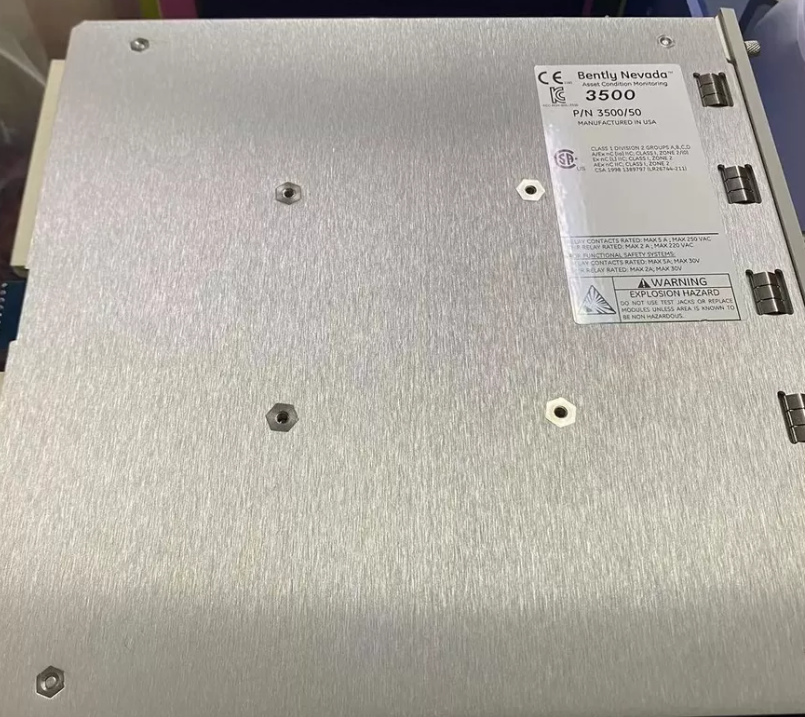

3500/50-01-00 Bently Nevada Vibration Monitoring System Tachometer Module Front Card 286566-02
| Manufacturer: | Bently Nevada | Model Number: | 3500/50-01-00 |
|---|---|---|---|
| Product Type: | Tachometer Module | I/O Module Type: | I/O Module With Internal Terminations |
| Agency Approval Option: | None | Quality: | 100% New Original |
| Country Of OriginF: | USA | Weight: | 3 Kg |
| Highlight: | 3500/50-01-00 Bently Nevada Vibration Monitoring System,Bently Nevada Vibration Monitoring System 286566-02,286566-02 tachometer module | ||
3500/50-01-00 Bently Nevada Tachometer Module
Description
The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft
rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.
The Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options are available:
Speed Monitoring, Setpoint Alarming and Speed Band Alarming
Speed Monitoring, Setpoint Alarming and Zero Speed Notification
Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification
The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use
by other monitors. Therefore, you don't need a separate Keyphasor module in the rack. The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.
Information
3500/50M Tachometer Module
3500/50-AA-BB
A: I/O Module Type
01 I/O Module with Internal Terminations
02 I/O Module with External Terminations
04 I/O Module with Internal Barriers and Internal Terminations
B: Hazardous Area Approval Option
00 None
01 CSA/NRTL/C (Class 1, Division 2)
02 ATEX/IECEx/CSA (Class 1, Zone 2)
