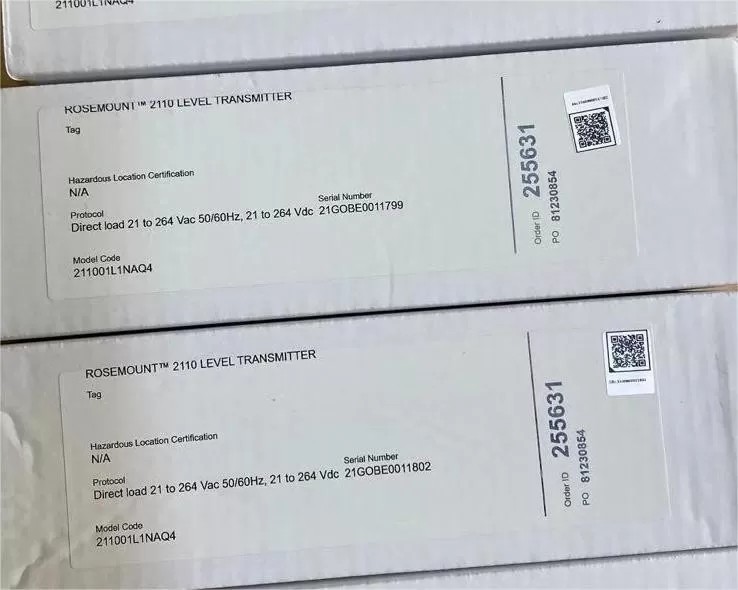

211001L1NAQ4 Rosemount 2110 Vibrating Fork Level Switch
| Manufacture: | ROSEMOUNT | Product No: | 211001L1NAQ4 |
|---|---|---|---|
| Product Type: | Liquid Level Switch | Electronic Type: | Direct Load Switching With Plug Connection (2 Wire) 21 To 264 Vac 50/60 Hz, 21 To 264 Vdc |
| Process Connection Size/type: | 1-in. BSPP (G) Semi-extended 4.6 In. (116 Mm) | Product Certificates: | No Hazardous Locations Certifications (safe Area Use Only) |
| Calibration Data Certification: | Certificate Of Functional Test | Origin: | Singapore Or Mexico |
| Highlight: | 211001L1NAQ4 rosemount 2110 vibrating fork level switch,rosemount 2110 vibrating fork level switch,2110 rosemount | ||
Emerson Rosemount 211001L1NAQ4 2110 Level Switch Vibrating Fork
Product Details:
Manufactuer : ROSEMOUNT
Product No. : 211001L1NAQ4
Product Type : Liquid Level Switch
Product Description
Rosemount 2110 Level Switch offers reliable level detection with minimum maintenance for narrow spaces and in-pipe measurement. It is ideal for simple, fast-fit level applications and basic overfill prevention. Hygienic certificates expand application capability to include sanitary processes. The Rosemount 2110 has no moving parts, needs no calibration, and is virtually unaffected by process conditions. The compact stainless steel housing and fast-fit plug-socket connection is perfect for high-volume OEM users.
Specification:
Operating Pressure:-3.62 to 1450 psi (-0.25 to 100 bar)
Operating Temperature:-40 to 302°F / -40 to 150°C
Safety:TÜV tested and WHG approved for overfill prevention
Diagnostics:Built in diagnostics continuously monitors instrument health
Features:
Magnetic test point makes proof testing of the Rosemount 2110 easy
Minimal installation restrictions and no calibration required, keeping costs down
Heartbeat LED provides visual indication
Rapid wet-to-dry time for highly responsive switching
‘Fast Drip’ fork design gives quicker response time, especially with viscous liquids
3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards
Key features and benefits:
1.Stainless steel housing and plug/socket connection for fast-fit, high-volume users.
2.Compact and lightweight design for side or top mounting.
3.The industry standard DIN 43650 plug/socket is used for a fast connection. The polarity insensitivity and short circuit protection make electrical hook-up safe and easy.
4.The level switch is designed for operation in temperatures from –40 to 302 °F (–40 to 150 °C).
5.Rapid wet-to-dry time for highly responsive switching.
6.Fast drip’ fork design gives quicker response time, especially with viscous liquids.
7.The ‘heartbeat’ LED gives an instant visual indication that the unit is operational.
8.Fork shape is optimized for polishing to meet hygienic requirements. Mechanical-polishing and electro-polishing options.
9.No moving parts or crevices for virtually no maintenance.
10. Magnetic test point makes functional test easy.
